Track Pad for Link Belt LS418 Crawler Crane
Information:
38″ wide link belt ls418 track pad standard. The net weight is 89kg per piece.
The material is 28CrMnMo, and pin is made of 42CrMo.
|
Technology |
Casting |
|
Heat-Treatment |
Yes |
|
Brand |
VM |
|
Warranty |
2500 working hours |
Besides, one piece track shoe will need one pin to connected with other track shoes.

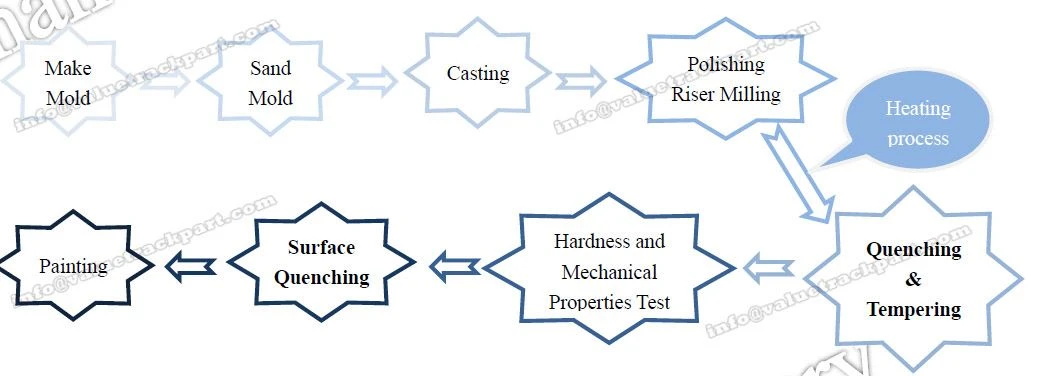

Production as follows,
The important process is Heat-Treatment, there has strict standard for this:
All casting should be Austenitized at 900°C for one Hr per every inch of casting thickness.
Then Quenched on water and Tempered for sufficient amount of temperature and time.
All heat treatment should be carried out after castings reach temperature lower than 200°C. The general hardness after QT to be 280-320 BHN.
All test specimen to be placed in HT furnace with each relevant batch of casting.

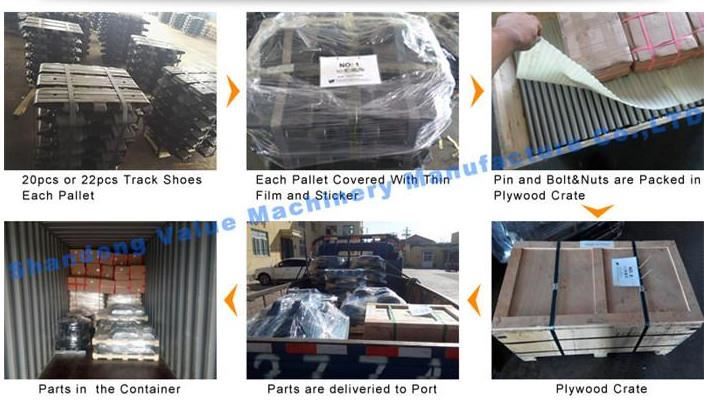

Package:
12pieces link belt ls418 crawler shoes will be packed one pallet, and photo as your reference.
